BD-EVA-P7 EV Electric AC Power Charging Station
BD-EVA-P7
BD-EVA-P7 EV AC electric vehicle charging pile is mainly suitable for standard charging scenarios (such as parking charging in industrial parks, parking charging in office areas, parking charging in residential areas, etc.), with an output power of 7kW. The product consists of two functional modules: human-computer interaction and internal control. The human-computer interaction part includes a metering unit, a card reader, and a display unit, which are used to set charging, billing methods, charging process parameters, and card identification. The internal control module consists of a main control board, a power supply, a control and protection unit, and back-end communication. It completes the start, operation, real-time monitoring, and stop of the charging process, and can send data to the back-end in real time through various communication methods.
Quantity:
Main Features
1. Offers both pedestal and wall-mounted installation methods.
2. Real-time display of charging voltage, current, time, quantity, cost, etc.
3. Utilizes a non-contact smart card reader to read IC card information, communicating with the main control board
via RS-232 interface for IC card identification, user information recording, and charging cost calculation.
4. Equipped with leakage protection, short circuit protection, overload protection, lightning protection, and emergency
stop button protection.
5. Allows real-time monitoring of current charging voltage, current, quantity, cost, etc., through the mobile backend.
6. Enables control and monitoring of the charging pile through the PC backend, viewing various information including
card swiping records, and supports file export.
7. The case is made of PC plastic.
1. Offers both pedestal and wall-mounted installation methods.
2. Real-time display of charging voltage, current, time, quantity, cost, etc.
3. Utilizes a non-contact smart card reader to read IC card information, communicating with the main control board
via RS-232 interface for IC card identification, user information recording, and charging cost calculation.
4. Equipped with leakage protection, short circuit protection, overload protection, lightning protection, and emergency
stop button protection.
5. Allows real-time monitoring of current charging voltage, current, quantity, cost, etc., through the mobile backend.
6. Enables control and monitoring of the charging pile through the PC backend, viewing various information including
card swiping records, and supports file export.
7. The case is made of PC plastic.
Model Meaning
BD-EVA-P7-1KP
| BD | -EV | A | -P | 7 | -1 | K | P | ||||||||
| matches | |||||||||||||||
| Company code | Charging type | Current type | quantity of charging gun | shell material | Watts | Display type | Function | Installation method | |||||||
| BFDL | Electrical vehicle | A | AC | single gun | P | plastic | 7 | 7kw | 0 | No screen | P | P:Plug and Play | W | Wall-mounted | |
| PD | DC | 2 | two gun | M | metal (iron) | 10 | 10kw | 1 | LCD screen | K | K: KEY (Electronic key) | P | Pedestal | ||
| 3 | customize | 11 | 11kw | 2 | Touch screen | L | L: LAN (Ethernet operation) | ||||||||
| 21 | 21kw | G | G: 4G (4G operation) | ||||||||||||
| Y | Y: Card prepayment | ||||||||||||||
| YG | YG: Swipe card to operate | ||||||||||||||
| Note: Functions above can be combined | |||||||||||||||
Main Technical Parameters
| BD-EVA-P7 Plastic Case AC Charging Pile Detailed Parameters | |
| Input/OutputVoltage | AC220V±15% |
| Output Power | 7kW |
| Output Current | 0～32（A） |
| Cable Length | 5m/3.5m |
| Human Interface | 4.3 inch high-brightness color touch screen/display |
| Charging Mode | Automatic full charge / Setting a certian amount of electric / Setting a certian amount of charging fees / Setting a certian amount of charging time |
| Charging Method | Card charging / QR code charging / Plug and charge / Password charging / Electronic key charging |
| Payment Method | Card payment / QR code payment |
| Communication Interface | Ethernet/Other |
| Optional Features | Card/LAN/Fullfunctionality |
| Protection Level | IP54 |
| Standards | GB/T18487.1-2015 / GB/T20234.2-2015 |
Main Features
1. Offers both pedestal and wall-mounted installation methods.
2. Real-time display of charging voltage, current, time, quantity, cost, etc.
3. Utilizes a non-contact smart card reader to read IC card information, communicating with the main control board
via RS-232 interface for IC card identification, user information recording, and charging cost calculation.
4. Equipped with leakage protection, short circuit protection, overload protection, lightning protection, and emergency
stop button protection.
5. Allows real-time monitoring of current charging voltage, current, quantity, cost, etc., through the mobile backend.
6. Enables control and monitoring of the charging pile through the PC backend, viewing various information including
card swiping records, and supports file export.
7. The case is made of PC plastic.
2. Real-time display of charging voltage, current, time, quantity, cost, etc.
3. Utilizes a non-contact smart card reader to read IC card information, communicating with the main control board
via RS-232 interface for IC card identification, user information recording, and charging cost calculation.
4. Equipped with leakage protection, short circuit protection, overload protection, lightning protection, and emergency
stop button protection.
5. Allows real-time monitoring of current charging voltage, current, quantity, cost, etc., through the mobile backend.
6. Enables control and monitoring of the charging pile through the PC backend, viewing various information including
card swiping records, and supports file export.
7. The case is made of PC plastic.

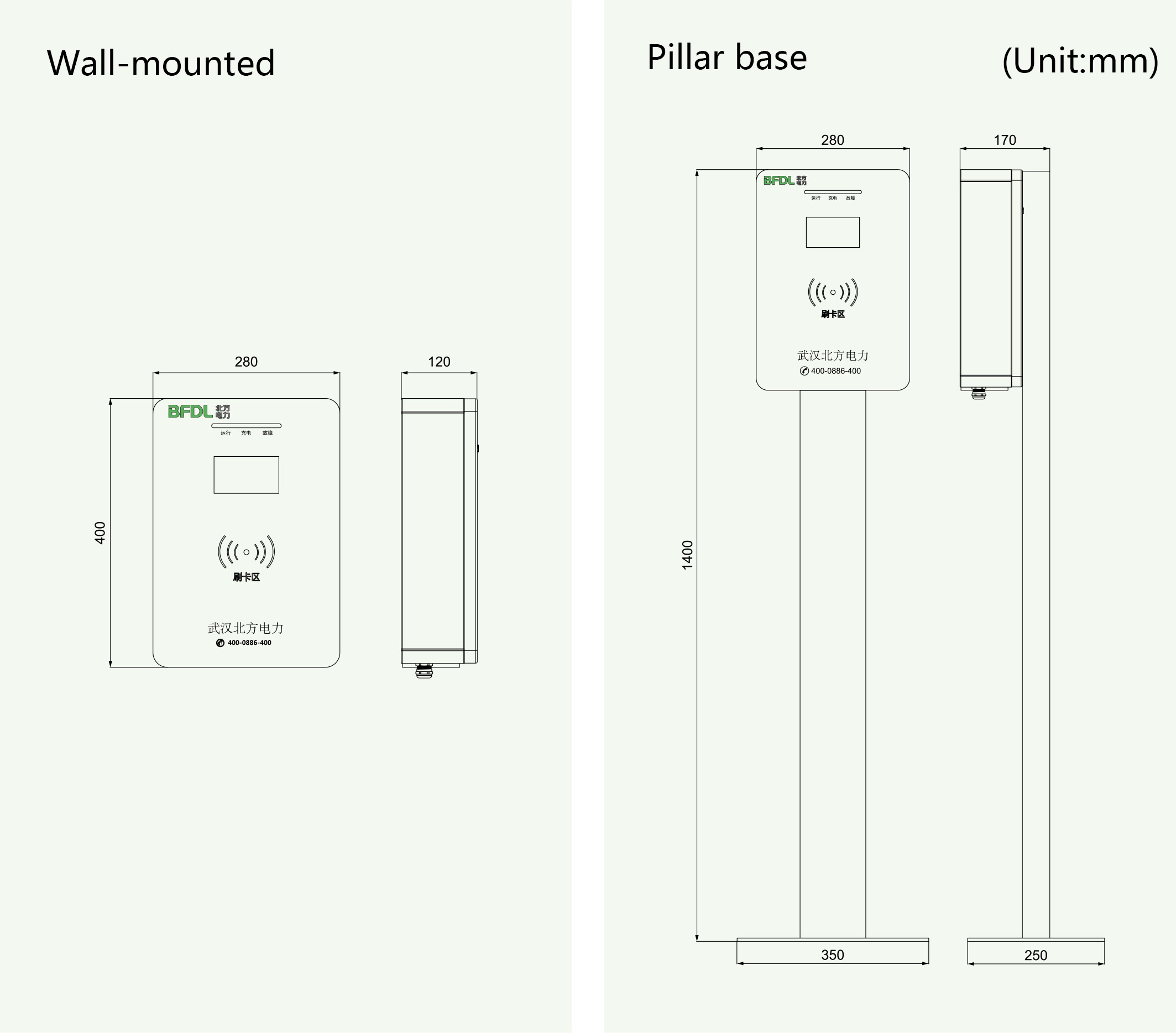

Charging Pile Dimensions
