BD-EVA-M7 AC Clever Standing Charging Station
BD-EVA-M7
BD - EVA - M7 AC smart charging pile, with a vertical design, is highly versatile and can be flexibly deployed in diverse charging scenarios, including parking charging in industrial parks, office areas, and residential areas. Operating at 220V, it supports a current range from 0 to 32A and offers a maximum power output of 7kW. Equipped with a 4.3 - inch screen for easy control, it also features an RS - 232 interface, enabling seamless connectivity and efficient operation in different settings.
Quantity:
Main Features
1. Flexible Installation Options: Supports both pedestal and wall - mounted installation methods, adapting to different spatial requirements in various charging locations such as parking lots, garages, and public areas.
2. Comprehensive Monitoring and Display: Real - time displays charging parameters like voltage, current, time, quantity, and cost on - site. Additionally, enables real - time monitoring of these parameters through the mobile backend, providing users with convenient access to charging information at any time.
3. Intelligent Card - based Operation: Utilizes a non - contact smart card reader to read IC card information. Communicates with the main control board via the RS - 232 interface for accurate IC card identification, user information recording, and charging cost calculation. This ensures secure and convenient charging transactions.
4. Robust Safety Protection: Equipped with multiple safety protection mechanisms including leakage protection, short - circuit protection, overload protection, and an emergency stop button. These features safeguard the charging process, protecting both the charging equipment and electric vehicles from potential electrical hazards.
5. PC - based Management: Allows control and monitoring of the charging pile through the PC backend. Users can view various details such as card - swiping records and support file export for data management and analysis purposes.
2. Comprehensive Monitoring and Display: Real - time displays charging parameters like voltage, current, time, quantity, and cost on - site. Additionally, enables real - time monitoring of these parameters through the mobile backend, providing users with convenient access to charging information at any time.
3. Intelligent Card - based Operation: Utilizes a non - contact smart card reader to read IC card information. Communicates with the main control board via the RS - 232 interface for accurate IC card identification, user information recording, and charging cost calculation. This ensures secure and convenient charging transactions.
4. Robust Safety Protection: Equipped with multiple safety protection mechanisms including leakage protection, short - circuit protection, overload protection, and an emergency stop button. These features safeguard the charging process, protecting both the charging equipment and electric vehicles from potential electrical hazards.
5. PC - based Management: Allows control and monitoring of the charging pile through the PC backend. Users can view various details such as card - swiping records and support file export for data management and analysis purposes.
Model Meaning
BD-EVA-M7-1KP
| BD | -EV | A | -M | 7 | -1 | K | P | ||||||||
| matches | |||||||||||||||
| Company code | Charging type | Current type | quantity of charging gun | shell material | Watts | Display type | Function | Installation method | |||||||
| BFDL | Electrical vehicle | A | AC | single gun | P | plastic | 7 | 7kw | 0 | No screen | P | P:Plug and Play | W | Wall-mounted | |
| PD | DC | 2 | two gun | M | metal (iron) | 10 | 10kw | 1 | LCD screen | K | K: KEY (Electronic key) | P | Pedestal | ||
| 3 | customize | 11 | 11kw | 2 | Touch screen | L | L: LAN (Ethernet operation) | ||||||||
| 21 | 21kw | G | G: 4G (4G operation) | ||||||||||||
| Y | Y: Card prepayment | ||||||||||||||
| YG | YG: Swipe card to operate | ||||||||||||||
| Note: Functions above can be combined | |||||||||||||||
Main Technical Parameters
| BD-EVA-M7 Iron Shell AC Charging Pile Detailed Parameters | |
| Input/OutputVoltage | AC220V±15% |
| Output Power | 7kW |
| Output Current | 0～32（A） |
| Cable Length | 5m/3.5m |
| Human Interface | 4.3 inch high-brightness color touch screen/display |
| Charging Mode | Automatic full charge / Setting a certian amount of electric / Setting a certian amount of charging fees / Setting a certian amount of charging time |
| Charging Method | Card charging / QR code charging / Plug and charge / Password charging / Electronic key charging |
| Payment Method | Card payment / QR code payment |
| Communication Interface | Ethernet/Other |
| Optional Features | Card/LAN/Fullfunctionality |
| Protection Level | IP54 |
| Standards | GB/T18487.1-2015 / GB/T20234.2-2015 |
Main Features
1. Offers both pedestal and wall-mounted installation methods.
2. Real-time display of charging voltage, current, time, quantity, cost, etc.
3. Utilizes a non-contact smart card reader to read IC card information, communicating with the main control board
via RS-232 interface for IC card identification, user information recording, and charging cost calculation.
4. Equipped with leakage protection, short circuit protection, overload protection, lightning protection, and emergency
stop button protection.
5. Allows real-time monitoring of current charging voltage, current, quantity, cost, etc., through the mobile backend.
6. Enables control and monitoring of the charging pile through the PC backend, viewing various information including
card swiping records, and supports file export.
7. The case is made of PC plastic.
2. Real-time display of charging voltage, current, time, quantity, cost, etc.
3. Utilizes a non-contact smart card reader to read IC card information, communicating with the main control board
via RS-232 interface for IC card identification, user information recording, and charging cost calculation.
4. Equipped with leakage protection, short circuit protection, overload protection, lightning protection, and emergency
stop button protection.
5. Allows real-time monitoring of current charging voltage, current, quantity, cost, etc., through the mobile backend.
6. Enables control and monitoring of the charging pile through the PC backend, viewing various information including
card swiping records, and supports file export.
7. The case is made of PC plastic.

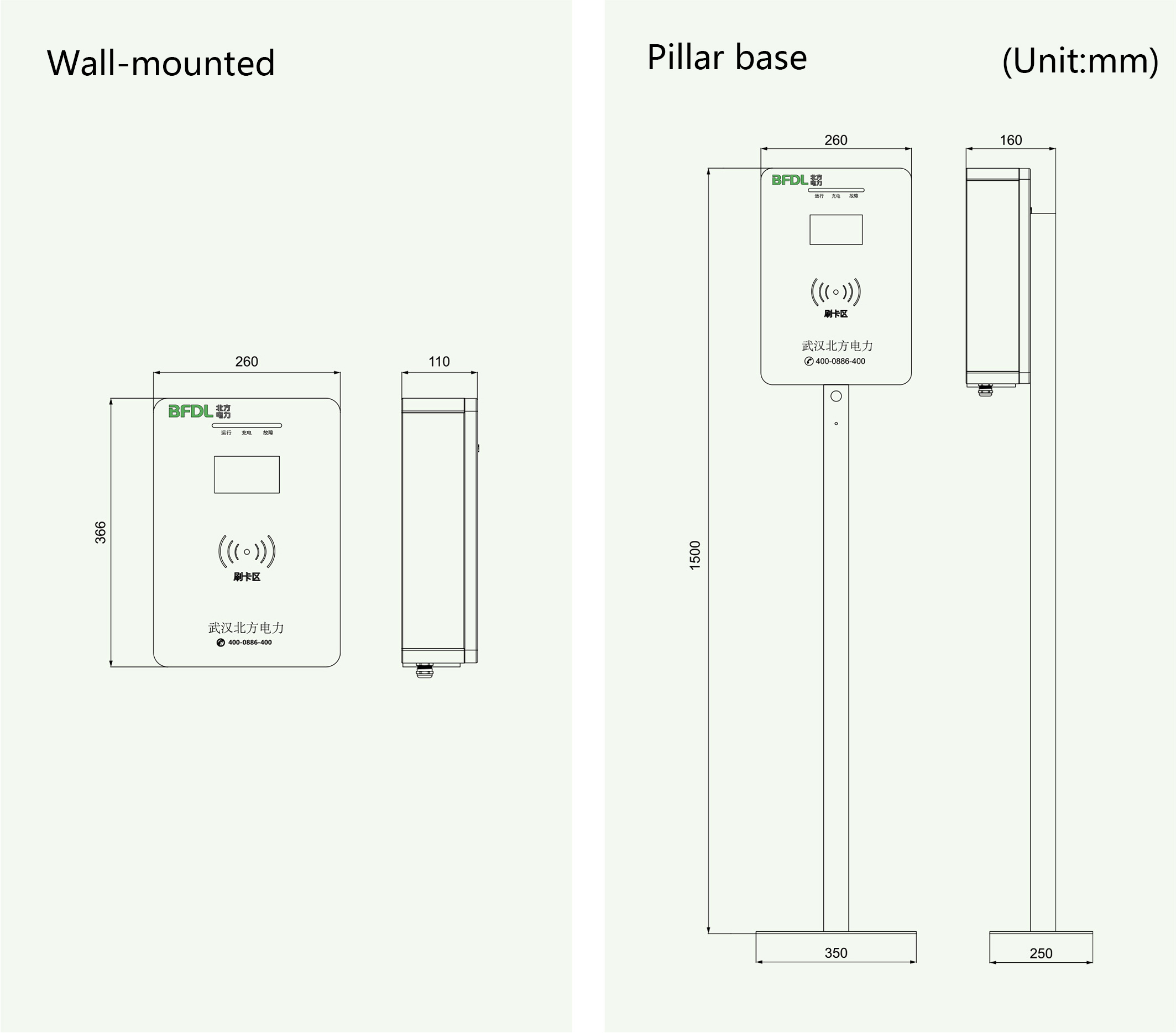

Charging Pile Dimensions
