BD-EVPDF-Z1 Commercial Fast Charging Pile Terminal Cabinet
BD-EVPDF-Z1 (single plug)
BD-EVPDF-Z1 Commercial Fast Charging Terminal Cabinet: Column-type multi-gun supercharging hub, 3-10 guns synchronous output (240-600kW power matrix). 200-1000V wide voltage platform is compatible with all commercial and passenger vehicle models, 804-1608A high current enables: 600kW mode for logistics heavy trucks to replenish 300km in 10 minutes, and 360kW dual guns for commercial dual vehicles to charge 80% each in 15 minutes. 96%+ full load efficiency (8% power saving), column design saves 50% of space, suitable for high-density scenarios such as logistics parks, supercharging stations, and bus hubs, and a single cabinet serves an average of 120 vehicles per day (70 vehicles for traditional equipment).
Quantity:
Main Features
1. Dynamic hybrid charging system: 3-10 guns are independently dispatched: AI identifies vehicle types (commercial and passenger vehicles/new and old platforms), dynamically allocates power (such as 600kW commercial vehicles + 240kW passenger vehicles), and the revenue per cabinet is increased by 40% (the average daily charging volume in a logistics park in Hangzhou is 5,400kWh → traditional 3,800kWh).
2. 15-minute deployment: prefabricated column base (including pre-buried interfaces), 15 minutes to complete the hoisting and power supply, and support"plug and play"expansion. Temporary scenarios deploy 100 guns in 4 hours and fully evacuate in 72 hours (traditional sites require 72 hours to build).
3. Zero-carbon energy hub: 1.5 times photovoltaic/energy storage over-matching (600kW pile + 900kW photovoltaic), AI green electricity matching: photovoltaic direct charging during the day, valley electricity energy storage at night.
2. 15-minute deployment: prefabricated column base (including pre-buried interfaces), 15 minutes to complete the hoisting and power supply, and support"plug and play"expansion. Temporary scenarios deploy 100 guns in 4 hours and fully evacuate in 72 hours (traditional sites require 72 hours to build).
3. Zero-carbon energy hub: 1.5 times photovoltaic/energy storage over-matching (600kW pile + 900kW photovoltaic), AI green electricity matching: photovoltaic direct charging during the day, valley electricity energy storage at night.
Model Meaning
BD-EVPDF-Z1 (single plug)
| BD | -EV | PD | F | - | 240 | - | P | ||||||||
| matches | |||||||||||||||
| Company code | Charging type | Current type | quantity of charging gun | shell material | Watts | Display type | Function | Installation method | |||||||
| BFDL | Electrical vehicle | A | AC | single gun | P | plastic | 240 | 240kw | 0 | No screen | P | P:Plug and Play | W | Wall-mounted | |
| PD | DC | 2 | two gun | M | metal (iron) | 360 | 360kw | 1 | LCD screen | K | K: KEY (Electronic key) | P | Pedestal | ||
| 3 | customize | 480 | 480kw | 2 | Touch screen | L | L: LAN (Ethernet operation) | ||||||||
| F | Split-type (3-10 guns) | 600 | 600kw | G | G: 4G (4G operation) | ||||||||||
| Y | Y: Card prepayment | ||||||||||||||
| YG | YG: Swipe card to operate | ||||||||||||||
| Note: Functions above can be combined | |||||||||||||||
Main Technical Parameters
| BD-EVPDF-Z1 (single plug) Split-type DC charging pile Detailed Parameters | |
| Input/OutputVoltage | AC380V±15% |
| Input Frequency | 50Hz±5% |
| Efficiency (Full Load) | ≥ 96% |
| Output Port | 3-10 plugs |
| Installation Method | Pillar base |
| Output Voltage | 200～750/1000（VDC） |
| Output Current | 0～804/1206/1608（A） |
| Output Power | 240/360/480/600（kW） |
| Cable Length | 5m |
| Human-Machine Interface | 7 inch high-brightness color touch screen |
| Power Factor | ≥0.99 |
| Voltage Regulation Accuracy | ≤±0.5% |
| Current Regulation Accuracy | ≤±1% |
| Current Unbalance | ≤±5% |
| Peak-Peak Ripple | ≤ 1% |
| Cooling Method | Forced air cooling |
| THD | ≤ 4% |
| Backend Communication Interface | Ethernet port /RS232/CAN/485/4G |
| Dimensions (Width × Depth× Height) | 1100mm*1500mm*2100mm |

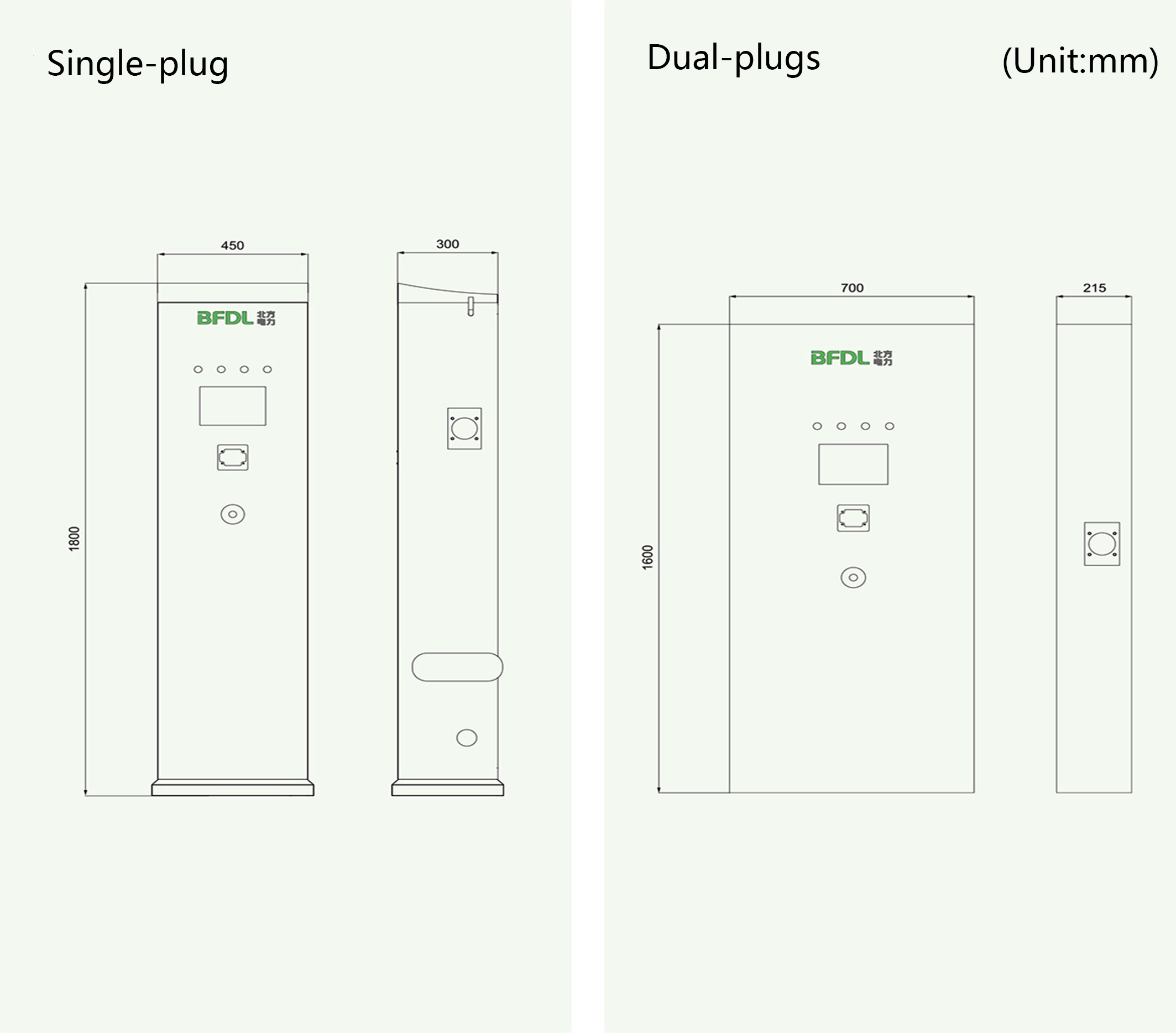

Charging Pile Dimensions
