BD-EVPD2-120/160/180 Outdoor Smart Connect Dual-Plug Charging Pile
BD-EVPD2-120/160/180
BD - EVPD2 - 120/160/180 Outdoor Smart Connect Dual - Plug Charging Pile is an outstanding solution for outdoor electric vehicle charging. It can be installed in public parking lots, shopping centers, and highway rest areas. This charging pile features a dual - plug design, allowing two vehicles to charge simultaneously, which significantly improves charging efficiency. With smart connectivity, users can easily monitor and control the charging process via a mobile app. Its outdoor - ready build ensures durability and reliable performance in various weather conditions.
Quantity:
Main Features
1. The charging equipment uses multiple high-frequency switching power supply modules in parallel redundancy backup operation,
forming a high-power charging system, with module current unbalance ≤5%, which is highly reliable and easy to maintain.
2. The power module utilizes LLC resonant technology to improve power efficiency, with charging system efficiency exceeding 95%.
3. Features segmented constant power design, allowing for a wide range of output voltage settings: current can significantly increase
charging speed.
4. The power module comes with a standard isolated CAN communication port for monitoring communication.
5. The charging system is equipped with an independent monitor that exchanges information with the human-machine interface and the
host computer, overseeing system operation.
6. The human-machine interface uses a high-performance ARM chip and a 4.3-inch true-color touch screen, designed for ease of use
and convenience.
7. The human-machine interface operates through the CAN bus and Battery Management System (BMS) or vehicle dashboard
connection, running according to parameters provided by the BMS to set different charging modes, achieving rapid charging.
8. Features comprehensive protection functions such as AC input over/under-voltage protection, AC overcurrent protection, phase loss
protection, AC leakage protection, DC output over-voltage protection, short circuit protection, overcurrent protection, overtemperature
protection, and anti-backflow protection at the output.
9. The touch screen displays real-time information on charging time, voltage, current, electricity, and costs.
10. Mobile backend allows real-time monitoring of current charging time, voltage, current, electricity, and costs.
11. The PC backend can control and monitor the charging pile, including card swiping records, and supports data export.
forming a high-power charging system, with module current unbalance ≤5%, which is highly reliable and easy to maintain.
2. The power module utilizes LLC resonant technology to improve power efficiency, with charging system efficiency exceeding 95%.
3. Features segmented constant power design, allowing for a wide range of output voltage settings: current can significantly increase
charging speed.
4. The power module comes with a standard isolated CAN communication port for monitoring communication.
5. The charging system is equipped with an independent monitor that exchanges information with the human-machine interface and the
host computer, overseeing system operation.
6. The human-machine interface uses a high-performance ARM chip and a 4.3-inch true-color touch screen, designed for ease of use
and convenience.
7. The human-machine interface operates through the CAN bus and Battery Management System (BMS) or vehicle dashboard
connection, running according to parameters provided by the BMS to set different charging modes, achieving rapid charging.
8. Features comprehensive protection functions such as AC input over/under-voltage protection, AC overcurrent protection, phase loss
protection, AC leakage protection, DC output over-voltage protection, short circuit protection, overcurrent protection, overtemperature
protection, and anti-backflow protection at the output.
9. The touch screen displays real-time information on charging time, voltage, current, electricity, and costs.
10. Mobile backend allows real-time monitoring of current charging time, voltage, current, electricity, and costs.
11. The PC backend can control and monitor the charging pile, including card swiping records, and supports data export.
Model Meaning
BD-EVPD2-120/160/180
| BD | -EV | PD | 2 | - | 120 | - | P | ||||||||
| matches | |||||||||||||||
| Company code | Charging type | Current type | quantity of charging gun | shell material | Watts | Display type | Function | Installation method | |||||||
| BFDL | Electrical vehicle | A | AC | single gun | P | plastic | 120 | 120kw | 0 | No screen | P | P:Plug and Play | W | Wall-mounted | |
| PD | DC | 2 | two gun | M | metal (iron) | 160 | 160kw | 1 | LCD screen | K | K: KEY (Electronic key) | P | Pedestal | ||
| 3 | customize | 180 | 180kw | 2 | Touch screen | L | L: LAN (Ethernet operation) | ||||||||
| G | G: 4G (4G operation) | ||||||||||||||
| Y | Y: Card prepayment | ||||||||||||||
| YG | YG: Swipe card to operate | ||||||||||||||
| Note: Functions above can be combined | |||||||||||||||
Main Technical Parameters
| BD-EVPD2-120/160/180 Integrated Dual-Plug DC Charging Pile Detailed Parameters | |
| Input/OutputVoltage | AC380V±15% |
| Input Frequency | 50Hz±5% |
| Efficiency (Full Load) | ≥ 96% |
| Output Port | Dual plug |
| Installation Method | Pillar base |
| Output Voltage | 200～750/1000（VDC） |
| Output Current | 0~250 (A) |
| Output Power | 120/160/180 (kW) |
| Cable Length | 5m |
| Human-Machine Interface | 7 inch high-brightness color touch screen |
| Power Factor | ≥0.99 |
| Voltage Regulation Accuracy | ≤±0.5% |
| Current Regulation Accuracy | ≤±1% |
| Current Unbalance | ≤±5% |
| Peak-Peak Ripple | ≤ 1% |
| Cooling Method | Forced air cooling |
| THD | ≤ 4% |
| Backend Communication Interface | Ethernet port /RS232/CAN/485/4G |
| Dimensions (Width × Depth× Height) | 710mm*545mm*1658mm |

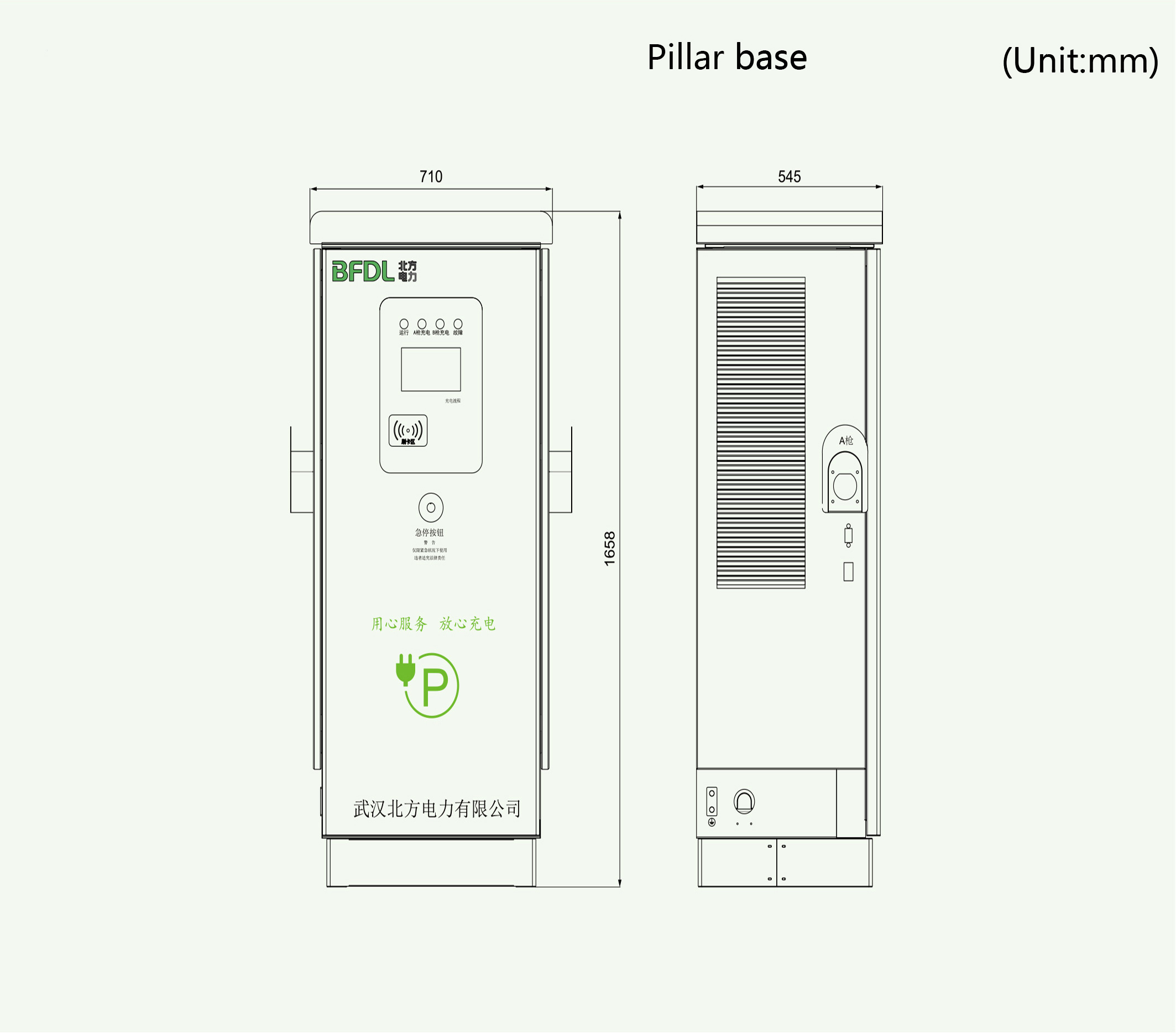

Charging Pile Dimensions
