BD-EVPD 90KW Integrated Single Gun DC Charging Pile
BD-EVPD-30/40/60/80/90
BD - EVPD 90KW integrated single-gun DC charging pile is a powerful charging solution suitable for a variety of scenarios. The 90kW high-power integrated design accurately matches the emergency energy replenishment needs of commercial places, transportation hubs and other scenarios. It is a fast charging option for scenarios such as hotels, shopping malls, and along highways.
Quantity:
Main Features
1. The single-gun output design simplifies the operation process. The maximum power is 90kW (BD-EVPD-90 model), which can replenish 80% of the power for electric vehicles within 20-30 minutes, significantly improving the hotel's charging turnover rate and optimizing customer experience.
2. All functional units (power distribution, charging, monitoring, etc.) are integrated in a single cabinet. The modular design supports fast installation and maintenance, adapts to the hotel's compact site layout, and reduces the equipment footprint and operation and maintenance complexity.
3. Provides five power models of 30kW, 40kW, 60kW, 80kW, and 90kW. Hotels can choose the adaptation plan according to the grid conditions. For example, small and medium-sized hotels can deploy 30kW models, and high-end hotels or high-traffic areas can choose 90kW models to improve service capabilities.
4. Supports real-time viewing of charging status (voltage, current, power, fees, etc.) on mobile App and PC backend, and supports card swiping record management and report export, which is convenient for hotel operators to unify billing and energy statistics. Reserved payment interface adapts to hotel membership system or third-party payment platform.
5. The shell is made of flame-retardant PC material, with IP54 protection level to resist outdoor wind and rain erosion, suitable for -40℃ to +85℃ environment. The power module adopts LLC resonance technology, and the system efficiency is over 95%, which reduces energy loss and reduces hotel operating costs.
6. Equipped with a 4.3-inch color touch screen, it displays charging parameters and operation instructions in real time, lowering the threshold for use. It integrates ten safety protection mechanisms (overvoltage, overcurrent, leakage, short circuit, etc.), and communicates with the vehicle BMS through the CAN bus to ensure a safe and reliable charging process.
2. All functional units (power distribution, charging, monitoring, etc.) are integrated in a single cabinet. The modular design supports fast installation and maintenance, adapts to the hotel's compact site layout, and reduces the equipment footprint and operation and maintenance complexity.
3. Provides five power models of 30kW, 40kW, 60kW, 80kW, and 90kW. Hotels can choose the adaptation plan according to the grid conditions. For example, small and medium-sized hotels can deploy 30kW models, and high-end hotels or high-traffic areas can choose 90kW models to improve service capabilities.
4. Supports real-time viewing of charging status (voltage, current, power, fees, etc.) on mobile App and PC backend, and supports card swiping record management and report export, which is convenient for hotel operators to unify billing and energy statistics. Reserved payment interface adapts to hotel membership system or third-party payment platform.
5. The shell is made of flame-retardant PC material, with IP54 protection level to resist outdoor wind and rain erosion, suitable for -40℃ to +85℃ environment. The power module adopts LLC resonance technology, and the system efficiency is over 95%, which reduces energy loss and reduces hotel operating costs.
6. Equipped with a 4.3-inch color touch screen, it displays charging parameters and operation instructions in real time, lowering the threshold for use. It integrates ten safety protection mechanisms (overvoltage, overcurrent, leakage, short circuit, etc.), and communicates with the vehicle BMS through the CAN bus to ensure a safe and reliable charging process.
Model Meaning
BD-EVPD-30/40/60/80/90
| BD | -EV | PD | - | 30 | - | P | |||||||||
| matches | |||||||||||||||
| Company code | Charging type | Current type | quantity of charging gun | shell material | Watts | Display type | Function | Installation method | |||||||
| BFDL | Electrical vehicle | A | AC | single gun | P | plastic | 30 | 30kw | 0 | No screen | P | P:Plug and Play | W | Wall-mounted | |
| PD | DC | 2 | two gun | M | metal (iron) | 40 | 40kw | 1 | LCD screen | K | K: KEY (Electronic key) | P | Pedestal | ||
| 3 | customize | 60 | 60kw | 2 | Touch screen | L | L: LAN (Ethernet operation) | ||||||||
| 80 | 80kw | G | G: 4G (4G operation) | ||||||||||||
| 90 | 90kw | Y | Y: Card prepayment | ||||||||||||
| YG | YG: Swipe card to operate | ||||||||||||||
| Note: Functions above can be combined | |||||||||||||||
Main Technical Parameters
| BD-EVPD-30/40/60/80/90 Integrated Single Plug DC Charging Pile Detailed Parameters | |
| Input/OutputVoltage | AC380V±15% |
| Input Frequency | 50Hz±5% |
| Efficiency (Full Load) | ≥ 96% |
| Output Port | Single plug |
| Installation Method | Pillar base |
| Output Voltage | 200～750/1000（VDC） |
| Output Current | 0~100/ 133 / 200/250 (A) |
| Output Power | 30/40/60/80/90 (kW) |
| Cable Length | 5m |
| Human-Machine Interface | 7 inch high-brightness color touch screen |
| Power Factor | ≥0.99 |
| Voltage Regulation Accuracy | ≤±0.5% |
| Current Regulation Accuracy | ≤±1% |
| Current Unbalance | ≤±5% |
| Peak-Peak Ripple | ≤ 1% |
| Cooling Method | Forced air cooling |
| THD | ≤ 4% |
| Backend Communication Interface | Ethernet port /RS232/CAN/485/4G |
| Dimensions (Width × Depth × Height) | 550mm*520mm*1400mm |

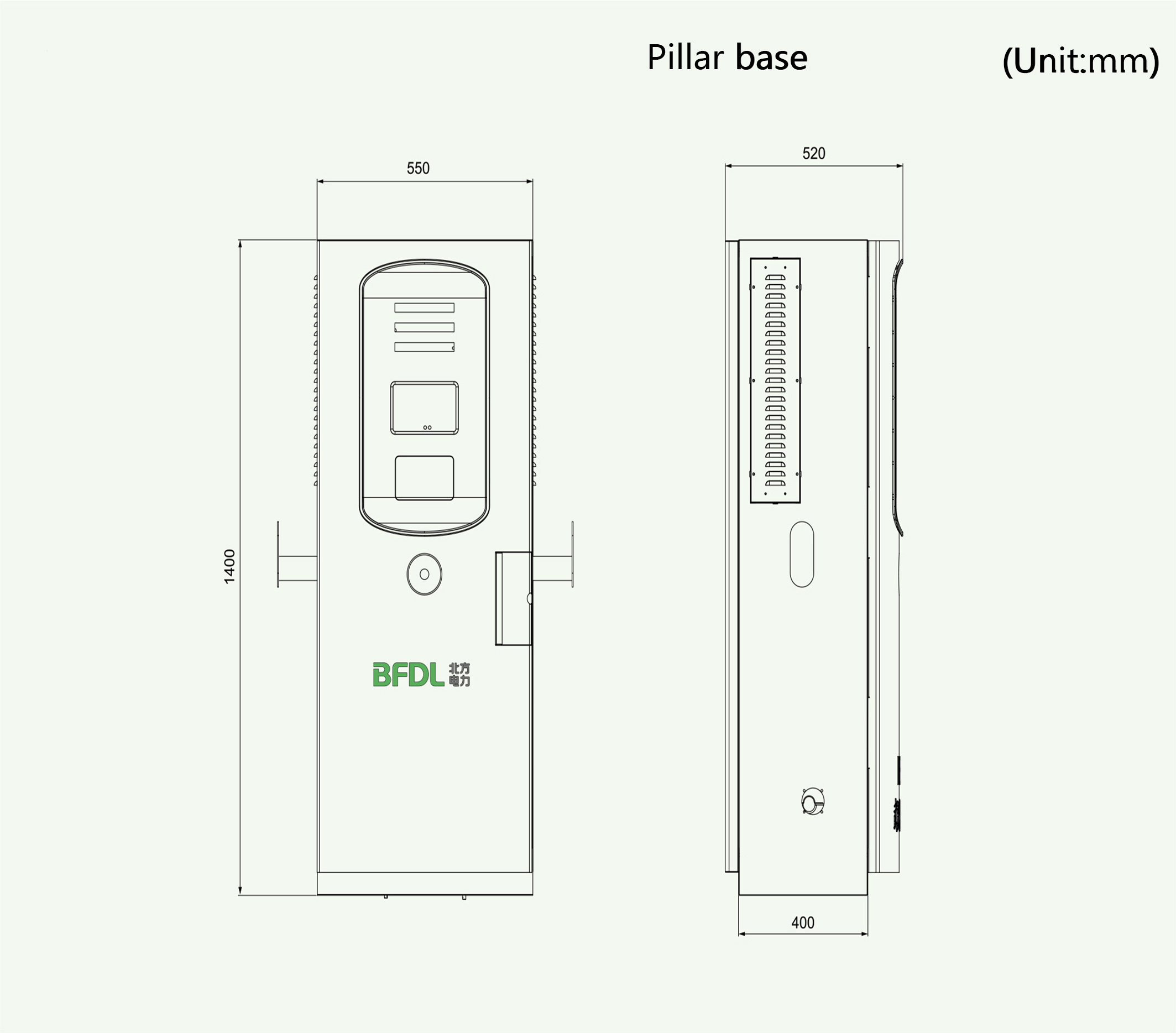

Charging Pile Dimensions
