BD-EVPD-20/30/40 Pedestal DC Level 3 Fast Charging Station for Business
BD-EVPD-20/30/40
The BD-EVPD-20/30/40 Pedestal DC Level 3 Fast Charging Station delivers 20-40kW ultra-fast DC charging (200-750/1000V, 0-67/100/133A) for commercial fleets and public hubs. Its rugged pedestal design supports outdoor deployment, with CCS/CHAdeMO/GB compatibility for all EVs. Charge 80% in 12-25 minutes (40kW: 12 mins for 200km; 20kW: 25 mins for 40kWh). Features include Plug&Charge (3-second vehicle recognition) and smart load balancing for 3-phase grids.
Quantity:
Main Features
1. 15-Minute Modular Maintenance: Hot-swappable 20/30/40kW power modules allow single-operator replacement in 15 minutes (vs. 2 hours for traditional stations), minimizing downtime for 24/7 commercial operations.
2. 48-Hour Global Deployment: Pre-fabricated IP67-rated units with packaging enable 48-hour port-to-site setup (including installation and testing), 5x faster than industry standards. Case: A Southeast Asian chain deployed 100 stations in 2 weeks, capturing early market share ahead of competitors.
3. Dynamic Time-of-Use Arbitrage: AI-driven energy scheduling charges at off-peak rates (e.g., 0-6 AM) using built-in storage (optional), then discharges at peak rates (18-22 PM) with 40kW full power. Savings: Up to 30% on electricity costs.
2. 48-Hour Global Deployment: Pre-fabricated IP67-rated units with packaging enable 48-hour port-to-site setup (including installation and testing), 5x faster than industry standards. Case: A Southeast Asian chain deployed 100 stations in 2 weeks, capturing early market share ahead of competitors.
3. Dynamic Time-of-Use Arbitrage: AI-driven energy scheduling charges at off-peak rates (e.g., 0-6 AM) using built-in storage (optional), then discharges at peak rates (18-22 PM) with 40kW full power. Savings: Up to 30% on electricity costs.
Model Meaning
BD-EVPD-20/30/40
| BD | -EV | PD | - | 20 | - | P | |||||||||
| matches | |||||||||||||||
| Company code | Charging type | Current type | quantity of charging gun | shell material | Watts | Display type | Function | Installation method | |||||||
| BFDL | Electrical vehicle | A | AC | single gun | P | plastic | 20 | 20kw | 0 | No screen | P | P:Plug and Play | W | Wall-mounted | |
| PD | DC | 2 | two gun | M | metal (iron) | 30 | 30kw | 1 | LCD screen | K | K: KEY (Electronic key) | P | Pedestal | ||
| 3 | customize | 40 | 40kw | 2 | Touch screen | L | L: LAN (Ethernet operation) | ||||||||
| G | G: 4G (4G operation) | ||||||||||||||
| Y | Y: Card prepayment | ||||||||||||||
| YG | YG: Swipe card to operate | ||||||||||||||
| Note: Functions above can be combined | |||||||||||||||
Main Technical Parameters
| BD-EVPD-20/30/40 Pedestal DC Charging Piles Detailed Parameters | |
| Input/OutputVoltage | AC380V±15% |
| Input Frequency | 50Hz±5% |
| Efficiency (Full Load) | ≥ 96% |
| Output Port | Single plug |
| Installation Method | Wall-mounted/Pillarbase |
| Output Voltage | 200～750/1000（VDC） |
| Output Current | 0～67/100/133（A） |
| Output Power | 20/30/40（kW） |
| Cable Length | 5m |
| Human-Machine Interface | 4.3-inch high-brightness color touch screen |
| Power Factor | ≥0.99 |
| Voltage Regulation Accuracy | ≤±0.5% |
| Current Regulation Accuracy | ≤±1% |
| Current Unbalance | ≤±5% |
| Peak-Peak Ripple | ≤ 1% |
| Cooling Method | Forced air cooling |
| THD | ≤ 4% |
| Backend Communication Interface | Ethernet port /RS232/CAN/485/4G |
| Dimensions (Width × Depth × Height) | 490mm*210mm*600mm （/1700mm） |

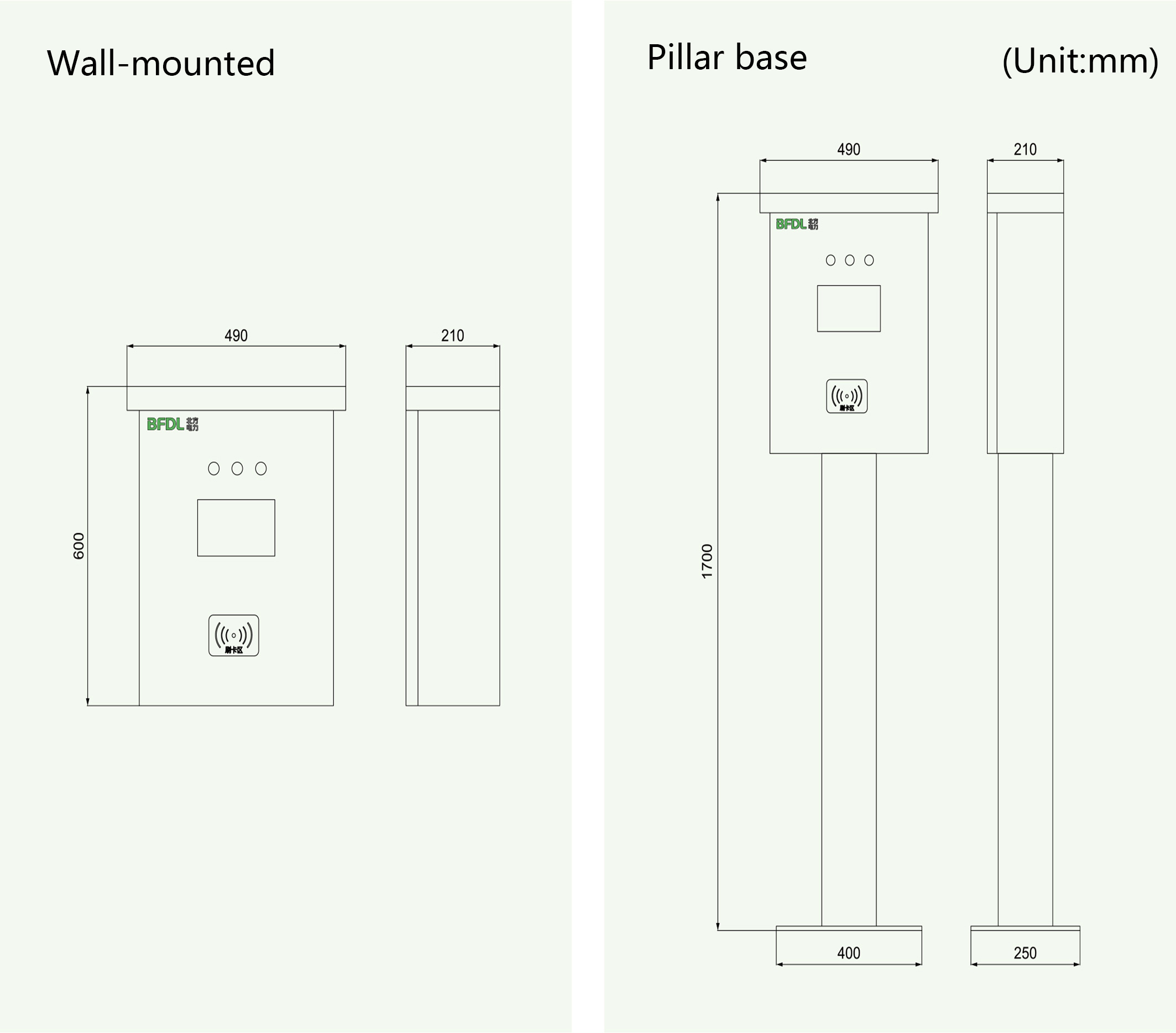

Charging Pile Dimensions
