BD-EVA2-M7 level 2 AC Dual Port Ev Charger
BD-EVA2-M7
The BD-EVA2-M7 Level 2 AC Dual Port EV Charger delivers fast, efficient charging with its dual-port design, enabling simultaneous charging of two EVs for homes, workplaces, or public stations. Leveraging Level 2 power (up to 7kW), it charges vehicles 3-5x faster than standard Level 1 chargers. Features include real-time charging data display, advanced safety protections (overload/leakage), and a compact, durable design for versatile installation. Ideal for multi-EV households or high-traffic locations, it combines speed, convenience, and reliability in a single unit.
Quantity:
Main Features
1. Supports dual-port simultaneous charging, and the 32A current output can meet the high-speed charging needs of two electric vehicles, adapting to mainstream electric models, shortening the charging waiting time, and improving home convenience.
2. Complying with the Level 2 charging standard of household 220V voltage, the charging power can reach 7kW (32A × 220V), which is 3-5 times faster than ordinary Level 1 chargers, suitable for home garage or private charging pile installation.
3. Using advanced power management technology, dynamically allocate current or prioritize charging paths to prevent overload and optimize energy efficiency, extending battery life.
4. Integrated overcurrent, overvoltage, short circuit and temperature protection functions, equipped with waterproof and dustproof shell to ensure safe use in outdoor or garage environments.
5. You can remotely monitor the charging status, set charging plans or receive fault reminders through the mobile phone App to enhance the smart home experience.
2. Complying with the Level 2 charging standard of household 220V voltage, the charging power can reach 7kW (32A × 220V), which is 3-5 times faster than ordinary Level 1 chargers, suitable for home garage or private charging pile installation.
3. Using advanced power management technology, dynamically allocate current or prioritize charging paths to prevent overload and optimize energy efficiency, extending battery life.
4. Integrated overcurrent, overvoltage, short circuit and temperature protection functions, equipped with waterproof and dustproof shell to ensure safe use in outdoor or garage environments.
5. You can remotely monitor the charging status, set charging plans or receive fault reminders through the mobile phone App to enhance the smart home experience.
Model Meaning
BD-EVA2-M7-1KW
| BD | -EV | A | 2 | -M | 7 | -1 | K | W | |||||||
| matches | |||||||||||||||
| Company code | Charging type | Current type | quantity of charging gun | shell material | Watts | Display type | Function | Installation method | |||||||
| BFDL | Electrical vehicle | A | AC | single gun | P | plastic | 7 | 7kw | 0 | No screen | P | P:Plug and Play | W | Wall-mounted | |
| PD | DC | 2 | two gun | M | metal (iron) | 10 | 10kw | 1 | LCD screen | K | K: KEY (Electronic key) | P | Pedestal | ||
| 3 | customize | 11 | 11kw | 2 | Touch screen | L | L: LAN (Ethernet operation) | ||||||||
| 21 | 21kw | G | G: 4G (4G operation) | ||||||||||||
| Y | Y: Card prepayment | ||||||||||||||
| YG | YG: Swipe card to operate | ||||||||||||||
| Note: Functions above can be combined | |||||||||||||||
Main Technical Parameters
| BD-EVA2-M7 Dual-Plug Iron Shell AC Charging Pile Detailed Parameters | |
| Input/OutputVoltage | AC220V±15% |
| Output Power | 7kW |
| Output Current | 0～32（A） |
| Cable Length | 5m/3.5m |
| Human Interface | 4.3 inch high-brightness color touch screen/display |
| Charging Mode | Automatic full charge / Setting a certian amount of electric / Setting a certian amount of charging fees / Setting a certian amount of charging time |
| Charging Method | Card charging / QR code charging / Plug and charge / Password charging / Electronic key charging |
| Payment Method | Card payment / QR code payment |
| Communication Interface | Ethernet/Other |
| Optional Features | Card/LAN/Fullfunctionality |
| Protection Level | IP54 |
| Standards | GB/T18487.1-2015 / GB/T20234.2-2015 |
Main Features
1. Offers both pedestal and wall-mounted installation methods.
2. Real-time display of charging voltage, current, time, quantity, cost, etc.
3. Utilizes a non-contact smart card reader to read IC card information, communicating with the main control board
via RS-232 interface for IC card identification, user information recording, and charging cost calculation.
4. Equipped with leakage protection, short circuit protection, overload protection, lightning protection, and emergency
stop button protection.
5. Allows real-time monitoring of current charging voltage, current, quantity, cost, etc., through the mobile backend.
6. Enables control and monitoring of the charging pile through the PC backend, viewing various information including
card swiping records, and supports file export.
7. The exterior is made of a metallic iron structure
2. Real-time display of charging voltage, current, time, quantity, cost, etc.
3. Utilizes a non-contact smart card reader to read IC card information, communicating with the main control board
via RS-232 interface for IC card identification, user information recording, and charging cost calculation.
4. Equipped with leakage protection, short circuit protection, overload protection, lightning protection, and emergency
stop button protection.
5. Allows real-time monitoring of current charging voltage, current, quantity, cost, etc., through the mobile backend.
6. Enables control and monitoring of the charging pile through the PC backend, viewing various information including
card swiping records, and supports file export.
7. The exterior is made of a metallic iron structure

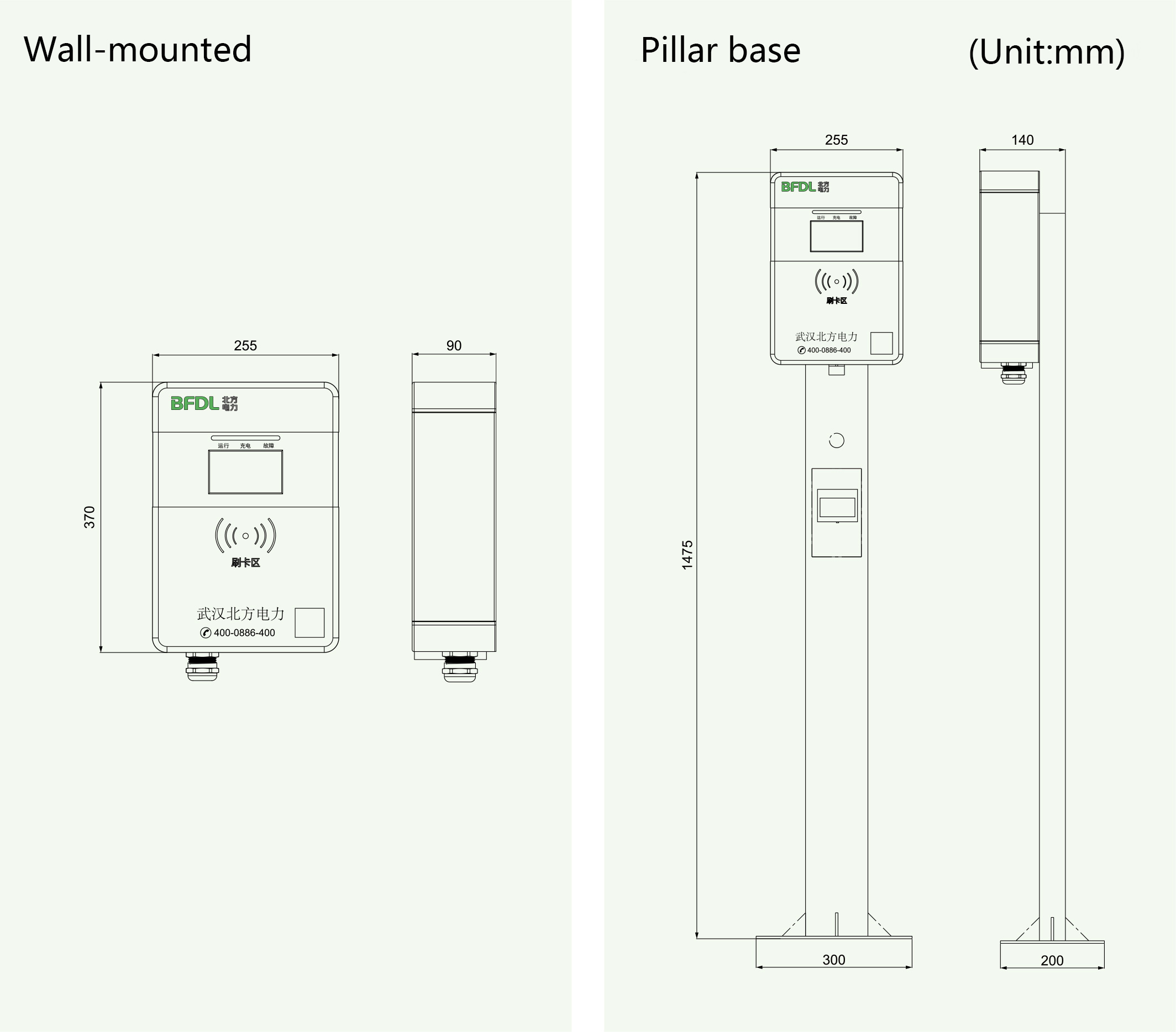

Charging Pile Dimensions
