BD-EVA-M21/11 Metal Shell Three-Phase AC Charging Pile
BD-EVA-M21/11
The BD-EVA-M21/11 metal-encased three-phase AC charger provides high-power charging for fast and efficient EV charging at home, commercial fleets or public stations. Its durable metal housing ensures ruggedness and weather resistance, and three-phase power charges 3 times faster than single-phase systems. Features include real-time data monitoring, overvoltage/overload protection, and Type 2/CCS compatibility for all major EVs. It's ideal for multi-car households or high-demand locations, combining industrial-grade reliability, safety (IP65-rated), and smart energy management in a compact design.
Quantity:
Main Features
1. Flexible installation: supports wall-mounted and floor-standing configurations (via detachable brackets) to adapt to garages, parking lots or narrow urban spaces without compromising stability.
2. User-friendly interface: features a 5-inch color touch screen + RFID reader for intuitive control - start/stop charging, view energy statistics and manage profiles without relying on apps.
3. Global safety compliance: UL/cTUVus certified with reinforced 3mm metal housing (IK10 impact resistance) and surge protection (6kV) to meet stringent North American/European grid standards.
4. Low-maintenance design: self-diagnostic system + modular components (charging modules can be replaced within 15 minutes) reduce downtime - perfect for commercial fleets that need to operate 24/7.
2. User-friendly interface: features a 5-inch color touch screen + RFID reader for intuitive control - start/stop charging, view energy statistics and manage profiles without relying on apps.
3. Global safety compliance: UL/cTUVus certified with reinforced 3mm metal housing (IK10 impact resistance) and surge protection (6kV) to meet stringent North American/European grid standards.
4. Low-maintenance design: self-diagnostic system + modular components (charging modules can be replaced within 15 minutes) reduce downtime - perfect for commercial fleets that need to operate 24/7.
Model Meaning
BD-EVA-M21/11-1KW
| BD | -EV | A | 2 | -M | 21 | -1 | K | W | |||||||
| matches | |||||||||||||||
| Company code | Charging type | Current type | quantity of charging gun | shell material | Watts | Display type | Function | Installation method | |||||||
| BFDL | Electrical vehicle | A | AC | single gun | P | plastic | 7 | 7kw | 0 | No screen | P | P:Plug and Play | W | Wall-mounted | |
| PD | DC | 2 | two gun | M | metal (iron) | 10 | 10kw | 1 | LCD screen | K | K: KEY (Electronic key) | P | Pedestal | ||
| 3 | customize | 11 | 11kw | 2 | Touch screen | L | L: LAN (Ethernet operation) | ||||||||
| 21 | 21kw | G | G: 4G (4G operation) | ||||||||||||
| Y | Y: Card prepayment | ||||||||||||||
| YG | YG: Swipe card to operate | ||||||||||||||
| Note: Functions above can be combined | |||||||||||||||
Main Technical Parameters
| BD-EVA2-M7 Dual-Plug Iron Shell AC Charging Pile Detailed Parameters | |
| Input/OutputVoltage | AC220V±15% |
| Output Power | 7kW |
| Output Current | 0～32（A） |
| Cable Length | 5m/3.5m |
| Human Interface | 4.3 inch high-brightness color touch screen/display |
| Charging Mode | Automatic full charge / Setting a certian amount of electric / Setting a certian amount of charging fees / Setting a certian amount of charging time |
| Charging Method | Card charging / QR code charging / Plug and charge / Password charging / Electronic key charging |
| Payment Method | Card payment / QR code payment |
| Communication Interface | Ethernet/Other |
| Optional Features | Card/LAN/Fullfunctionality |
| Protection Level | IP54 |
| Standards | GB/T18487.1-2015 / GB/T20234.2-2015 |
Main Features
1. Offers both pedestal and wall-mounted installation methods.
2. Real-time display of charging voltage, current, time, quantity, cost, etc.
3. Utilizes a non-contact smart card reader to read IC card information, communicating with the main control board
via RS-232 interface for IC card identification, user information recording, and charging cost calculation.
4. Equipped with leakage protection, short circuit protection, overload protection, lightning protection, and emergency
stop button protection.
5. Allows real-time monitoring of current charging voltage, current, quantity, cost, etc., through the mobile backend.
6. Enables control and monitoring of the charging pile through the PC backend, viewing various information including
card swiping records, and supports file export.
7. The exterior is made of a metallic iron structure.
2. Real-time display of charging voltage, current, time, quantity, cost, etc.
3. Utilizes a non-contact smart card reader to read IC card information, communicating with the main control board
via RS-232 interface for IC card identification, user information recording, and charging cost calculation.
4. Equipped with leakage protection, short circuit protection, overload protection, lightning protection, and emergency
stop button protection.
5. Allows real-time monitoring of current charging voltage, current, quantity, cost, etc., through the mobile backend.
6. Enables control and monitoring of the charging pile through the PC backend, viewing various information including
card swiping records, and supports file export.
7. The exterior is made of a metallic iron structure.

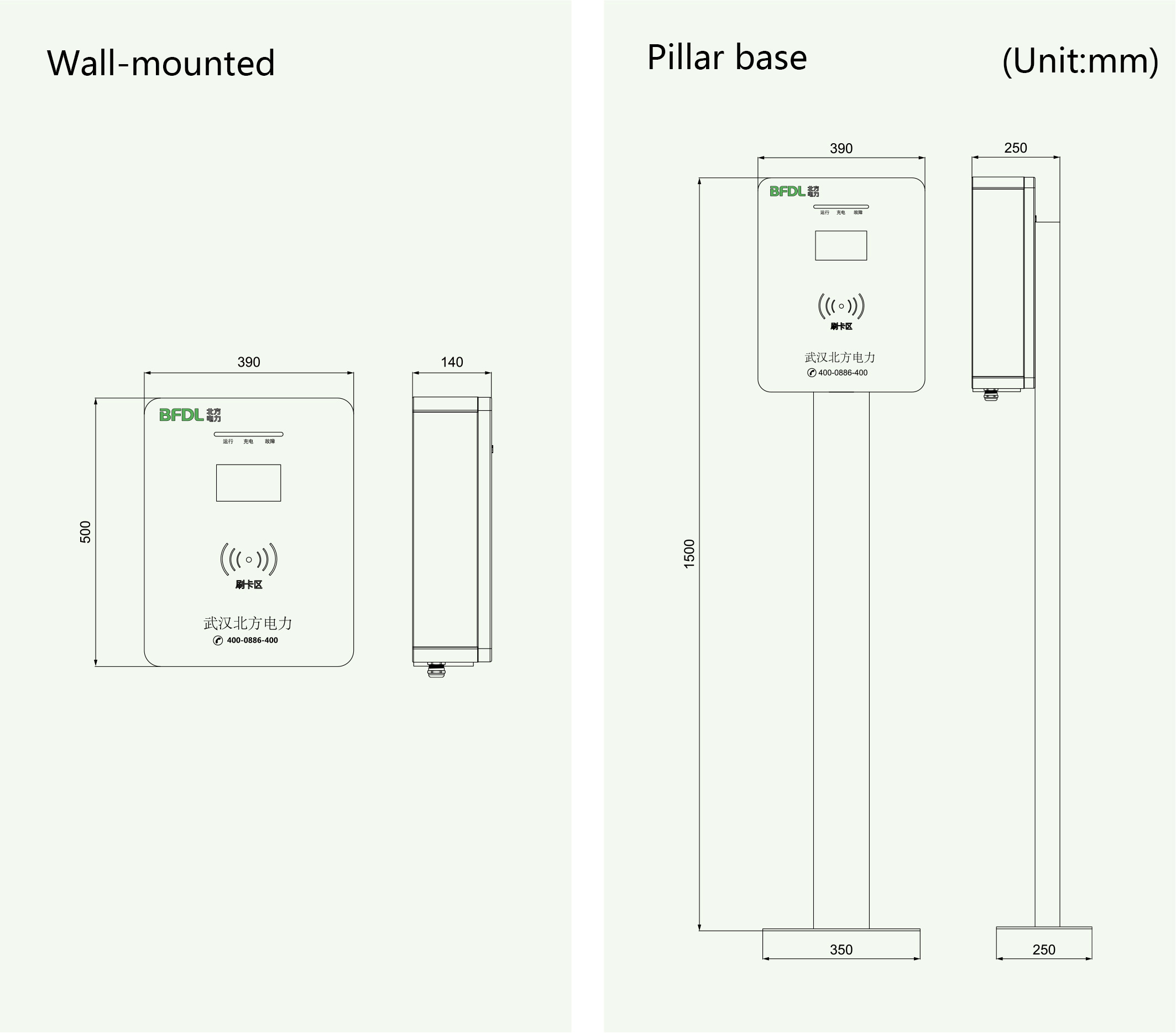

Charging Pile Dimensions
